Isaac Clarke's Helmet from Dead Space 2

For some time I've been wanting to make Isaac Clarke's engineering suit from DEAD SPACE 2, and was finally prompted to get it started.  Since most of my projects tend to take a long time (the curse of having plenty of time), I decided to give myself a month for the helmet as an exercise in meeting deadlines. That's one month to sculpt, mold, cast, paint, and wire up the electronics for the helmet.  I failed, but only because I was interrupted by a major nuclear disaster.

Here's a snapshot showcasing the finished helmet:
Helmet Test Fit Sheryl

Complete details about the build process after the jump.

Monday, August 22, 2011

Yesterday I Spent Four Hours Cleaning and Organizing my Workshop

Today you can't tell.

Cleaned Workshop



Thursday, August 18, 2011

SSS Compass Rose, Off to the Yard

Tuesday morning started bright and early aboard the Sea Scout Ship Compass Rose on the Petaluma River:
Compass Rose Haulout16

The ship was headed down to Richmond to be hauled out of the water for some new bottom paint.  While there, we're also pulling the starboard propeller off to have it straightened out.  Apparently we like that prop a lot and we've managed to knock it into something no less than four times since the last haulout.

Since the trip to the yard happened on short notice and it was to be the last day of summer before the crew had to start school again, the only scout who was able to make the trip was Brian, the ship's bosun:
Compass Rose Haulout25

We still had my niece and nephew aboard as well as Melissa's daughter Elise:
Compass Rose Haulout17

Fortunately, they managed to keep themselves entertained:
Compass Rose Haulout18

We left the marina in Petaluma at max ebb, so it was a pretty quick transit to Richmond:
Compass Rose Haulout19

Upon arrival, the Skipper and I went ashore and toured the very crowded yard:
Compass Rose Haulout20

I'm not sure what the haulout is going to cost, but there was no shortage of commercial and government boats there, so it must be cheap:
Compass Rose Haulout21

Compass Rose Haulout26

There was also this gorgeous Chinese junk:
Compass Rose Haulout22

While we were ashore one of the yard dogs found his way aboard the Rose.  His name is "Whitney."
Compass Rose Haulout23

Having checked in with the office and verified that all was secure on board, we left the ship alongside the dock to wait for space to open up so she can be yanked out of the water.
Compass Rose Haulout24

More to come.  Stay tuned...

Star Wars Republic Commando Helmet Part III: Painting and Wiring

The last time I wrote about this project, it looked like so:
First RC Cast0009

Since it was hard to see out of the helmet, the first thing I had to do was cut out the T-visor:
First RC Cast 01

Then I primed it and gave it a base coat of satin white paint:
First RC Cast 03

Once I'd cut and fitted a transparent blue acrylic insert, it was good to go:
RC Helmet Front

Of note, I'd also molded these little detail pieces for the chin:
RC Helmet Greeblies

It's not canon, but looking at this helmet next to my clonetrooper and stormtrooper helmets, I decided that this one really needed to have teeth cut into the frown:
Commando Boss Paint00

With the base colors painted on, it was time to add some more detailing and whatnot.  The video game is about a four-man squad and looking at the cover art on the box, I decided the first one I should paint was "RC-1138" also known as "Boss."  He's the one with the pumpkin-orange identification marks on his armor and helmet:

Bringing a video game character into the real world can be a bit tricky.  One of the tougher things for me is matching the colors.  After a bit of looking, I was happy to find Rustoleum "cinnamon" satin spraypaint:
Commando Boss Paint02

After giving the stripe a couple of coats, I peeled the masking tape and let the paint dry overnight.  The next day I drybrushed a few scratch marks here and there.  Then I gave the whole thing a blackwash to pick out the details:
RC Weathering
A "blackwash" is basically just slathering the whole thing with watered-down black acrylic paint. Then I used a damp cloth to wipe most of it off, leaving black paint in the details and recesses of the helmet.

Once the blackwash had mostly dried, I used a pad of 0000 steel wool to buff the black off of the high parts.  I also made sure to add a few wear marks:
RC Weathered 3

Here's a shot of the backside:
RC Weathered 4

It looked good, but I couldn't call it done until I had the lights and padding inside:
Boss Helmet Painted 3

Boss Helmet Painted 2

Boss Helmet Painted

Now I just need to resist the urge to paint up more casts of this helmet to look like the other three team members. The way these things go, my willpower will fail and I will make more.

Stay tuned...

HALO3 Assault Rifle Build

I keep promising myself I'm not going to make any more HALO stuff.  Sooner or later I'll stick to that promise.

Meanwhile, I started building yet another weapon from HALO3.  This time it's the MA5C Assault Rifle.  To begin with, I went over to the HALO costuming wiki and downloaded Roadwarrior's Pepakura model for the high-definition Assault Rifle.  Then I exported the .obj file and converted it to a format I could feed to Lopez the Robot Whittler and had him get to work:
First Slice Coming out of Machine

Once the first slice was out of the machine, I gave it a quick shoulder test to make sure it felt like it would fit:
Shoulder Test

Being a total idiot, I decided that the rifle needed to be about 3/4" longer.  So I went back through and re-sized the model and re-sliced it into pieces Lopez could carve.

Satisfied that the size was about right, I put Lopez to work on the slices of the bigger rifle:
AR Inner Left Slice

It's fun to watch Lopez do his thing. Especially on the more detailed slices:
AR Outer Left Slice

Here's the first two slices side by side:
AR Left Slices

Here they are glued together and clamped to the table saw so they'll be stay nice and straight as the glue cures:
AR Left Half

As you can see in the horribly grainy picture above, I soak a bit of epoxy into the rough surface of the cut MDF in order to fill the grain and preserve the details.  If I don't do this, the MDF is very fragile and the details can be brushed off with a fingernail.  It also helps to fill the grain so it won't soak up too much paint.  Otherwise I'll have to put dozens of coats of primer on it before I can even think of painting it.

Meanwhile, Lopes cranked out the first slice of the right half:
Third Slice Alongside

Which I then promptly epoxied to the portions I already had:
Three Slices Glued

Once the fourth and final slice of the main body was glued on, it was time to see how the whole thing fit:
Fit Testing Assembled AR Prototype
This would suit my purposes.

Then I started to smooth out the whole thing:
Assault Rifle Bondo Begins

With many of the details added in and the seam lines scored, I couldn't resist the urge to spray on a coat of black primer.
AR primer test

I'd also had Lopez cut me out a magazine.  It turned out I needed to make the magazine well a bit tighter by adding some styrene sheet to the inside:
AR smoothing and detailing 3

Then add a few details:
Assault Rifle for Helljumper2461

Here's a detail shot:
AR Primed Detail
Once I was happy with the details, the next step was to add the correct textures.  Since many areas of the rifle would end up being shiny and smooth, I started by spraying them with a nice, glossy coat of paint:
AR Pink

Other areas needed some texture to look like they were made of a molded plastic composite.  For that effect I masked the rifle off and sprayed it with a thick layer of truck bed liner:
AR Details
Then I drilled out the end where the barrel would go.  Since the plan was to cast the finished pieces in foam rubber, I would need to add an insert to keep the finished pieces rigid and straight.  The logical solution seemed to be a piece of 1/2" galvanized wiring conduit that would also double as the rifle's barrel:
Assault Rifle Molding01

I also cut a hole to receive a flashlight that could be added later.

With those last few details taken care of, the next step was to make the mold.  If you read my article about molding the Mass Effect Pistol, you know how to make a 2-part box mold.  With a piece this large that process would require a small fortune in silicone rubber.

Instead, I'm making a modified version of a matrix mold.  You can see a pictorial diagram that does a good job of explaining the matrix mold process by clicking HERE.  This type of mold allows you to have very precise control of the thickness of silicone in the jacket mold as well as a mothermold that mates up perfectly to hold everything in place.

In this case, I started with a nice clean surface to work on:
Assault Rifle Molding02

Then I made a plywood cutout to fit the rifle:
Assault Rifle Molding03

The next step was to build a clay mold wall.  This would seal the gap between the prototype and the plywood and serve as a tray to keep the liquid silicone from drooling all over the bench and the floor and my toes:
Assault Rifle Molding04

Once I was happy with the edges, the next step was to press dimples into the clay:
Assault Rifle Molding06

Lots of dimples:
Assault Rifle Molding07

Then I started mixing silicone:
Assault Rifle Molding08

A NOTE ABOUT THE POSSIBLE HEALTH RISKS ASSOCIATED WITH RTV SILICONE RUBBER: That 5-gallon bucket is heavy.  Lift with your knees, not with your back.

Once I'd mixed enough silicone to cover the rifle (about 55 ounces or so), I went ahead and poured on the print coat:
Assault Rifle Molding09
The little box on the top left corner of the picture above is the mold for the add-on bits such as the safety buttons and the charging handle.  I neglected to photograph them before starting the mold.

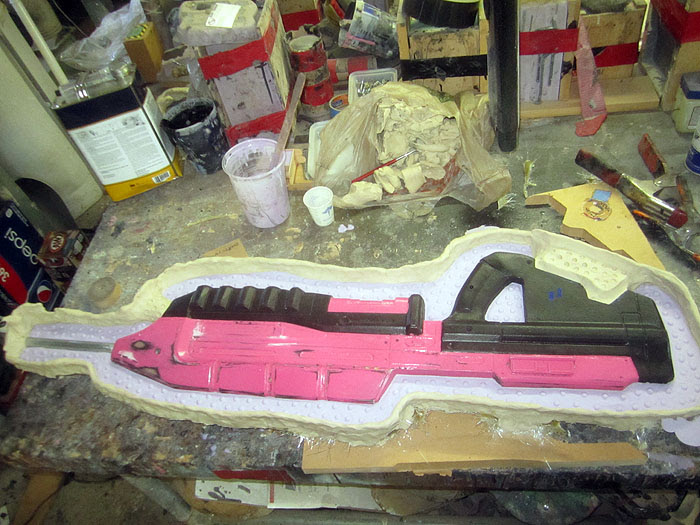

Once the print coat had cured, the next step was to build a layer of clay over the rifle where I wanted to add thickness:
MA5C Molding02
The ridges in the clay will allow the bubbles to work their way out of the silicone while the little cups will become pour spouts.  Later, when the silicone has cured, these will serve to keep the mothermold properly aligned to the  jacket mold and verse vice-a.

Satisfied that the clay is exactly the shape that I want the silicone to be, I laid fiberglass over it:.
MA5C Molding03

Once the fiberglass had set up, the next step was to pop it off of the rifle and remove the clay from inside:
MA5C Molding04

Then clamp the empty fiberglass shell down over the silicone again and pour silicone into the void:
MA5C Molding05
In this case I was able to predict how much silicone I'd need by measuring the volume of clay that I'd used earlier.  Since I don't have a clay-volume-meter* in the shop, it was a simple matter to weigh the clay and then figure out the density to get the volume used.  It turned out the void was about 55 fluid ounces.
Once I'd poured the silicone into the void, the next step was to resist the urge to mess with it.  At that point it was very late in the day anyway, so I was able to distract myself with a rare bit of sleep.

The next day I flipped the whole thing over and pulled the plywood off.  Then I carefully peeled off the clay from the horizontal parts of the original mold wall while leaving the vertical parts in place.

The vertical parts became the foundation of the mold wall for the second half.  With the mold wall built up, the whole thing looked like so:
MA5C Molding08
In order to prevent the next batch of silicone from sticking to the first half of the mold, I applied a thin layer of vaseline as a release agent:
MA5C Molding09
Once this was done, I mixed up more rubber and poured it over the second half of the rifle.  It turns out I mixed a tiny bit too much.  Either that or I didn't make the mold wall quite high enough:
MA5C Molding10

As I said, the process was identical to the process for the first half.  Here you can see the fiberglass mothermold built up over the clay matrix:
MA5C Molding 11

Here's the cleaned up mothermold clamped in place and ready for silicone to be poured in:
MA5C Molding 13

Here's one of the bubbles burping its way out of a pour spout:
MA5C Molding 14

Once the silicone had cured for the second half, I removed the blob of clay that was blocking the magazine well to reveal the nice, clean mold edges with all of the registration keys:

MA5C Molding 16
After applying a release agent (vaseline again) to the exposed silicone, I propped the whole mold up at an angle so I could pour a block of silicone into the magazine well:
MA5C Molding 17

Once the silicone had cured in the magazine well, I went ahead and did the same process for the hole under the barrel where the flashlight would go.  With this last bit of silicone cured, all that was left was to drill holes and bolt everything together.  Since this mold will be used to cast expanding foam, I needed to put in a lot of bolts to prevent blowout.

As I was pouring the silicone for the second half of the mold, I also went ahead and made a simple box mold for the magazine:
MA5C Molding 12

Once the first half had cured, here's what it looked like all set up to pour the second half:

MA5C Molding 15
When the mold had cured, I pulled the two halves apart, removed the prototype, and laid it open to air out for a bit:
MA5C Molding 18

Then pour and pull the first casting:
MA5C Molding 19

Then throw it repeatedly to the ground without breaking it:

Having made one, it was time to make many:
MA5C Casting 2

The first casting had some significant surface flaws because I was still getting the hang of how to cast with the foam.  By the time I'd gotten to the third casting, the details were almost perfectly reproduced:
MA5C Casting

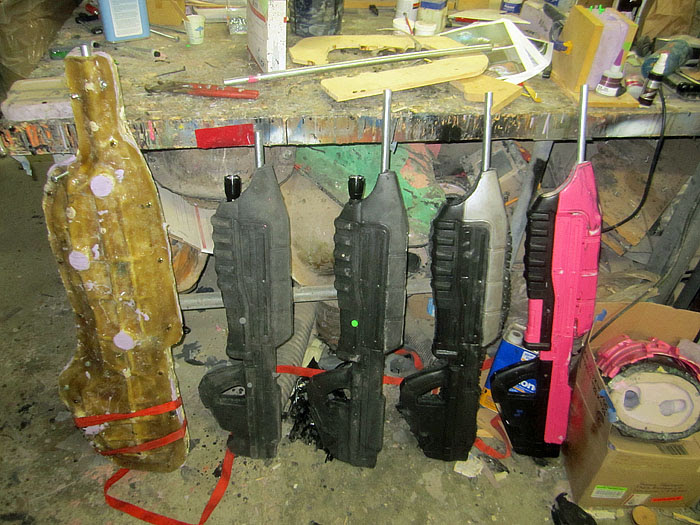

Once I had some good pulls, the next step was to paint them.  I used black Plasti-Dip as a primer over the foam.  Then I picked out the dark metallic parts with Model Masters Metalizer in gunmetal and the light metallic parts were Model Masters Metalizer in magnesium.  Once that had dried, I buffed it, sealed it, and gave it a blackwash to pick out all of the details:
MA5C blackwash

I'm very happy with the result:
MA5Cs Spike Grenades and BR for Helljumper

Since I was short on time and didn't want to have to wire up all of the indicator lights on either side of the rifle, I faked it.  I carved out some power buttons and made a simple box mold to replicate them as well as some LEDs.  Then I cast them in clear resin with glow-in-the-dark pigment added in.  Here's a shot of the rifles in the dark:
 MA5C Lights

The foam rifles look great from a distance, but for closeup shots I also went ahead and made one "hero" version.  It came out of the same mold, but I cast it in rigid urethane resin instead.  This way I could make the magazine removable without making the buttstock floppy.  The paintjob was exactly the same, but the finish work was a tiny bit better.  In the end I'm happy with the result:
MA5C hero finished
It's also the only one with a removable magazine.

Finally, I boxed them up and sent them off to the  East Coast for their screen debut in HALO: Helljumper.

Stay tuned for more goofy projects...
