Prop Building 101: Making a One-Sided Silicone Mold
A while back, the folks at MAKE Magazine asked me to do a quick moldmaking demonstration as part of their "Maker Camp," a virtual summer camp program conducted via Google+ Hangouts. I was happy to oblige. I usually have a handful of simple projects on my get-around-to-it list and this was an excuse to knock a couple of them out.
The first type of mold I demonstrated was a one-sided mold occasionally referred to as a "block mold." This is the type of mold you make when you need to replicate something with a flat side that has no details. When laid on that side, the piece has to have no significant undercuts where bubbles will be trapped.

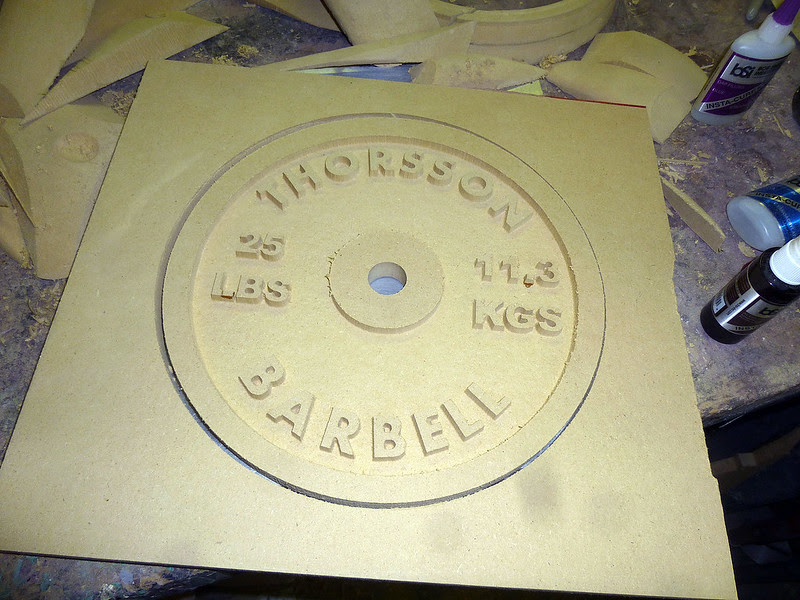

I decided that the perfect candidate for reproduction would be a simple barbell plate. I started by carving out a quick prototype on my CNC machine:

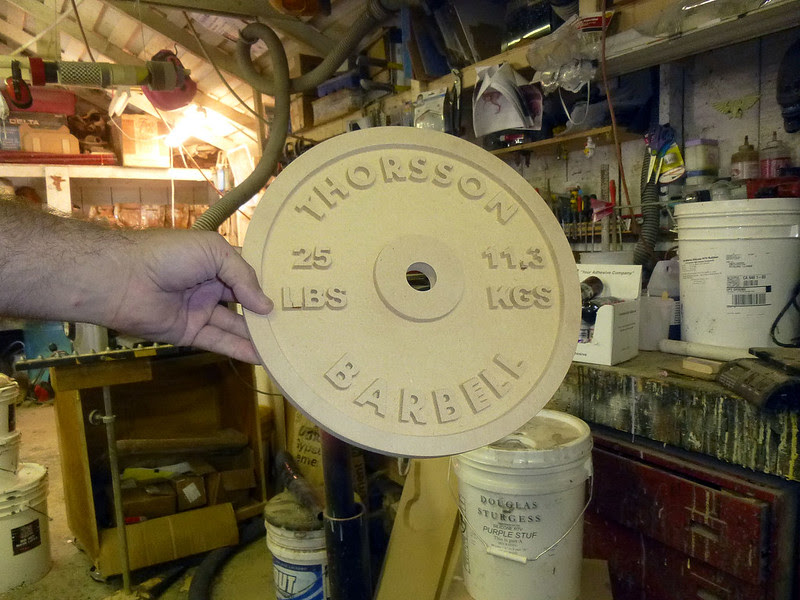

Here it is after a light sanding:
I gave it a couple of coats of primer to seal up the surface and then it was time to set it up for molding.
First, I glued it down to a piece of cardboard so it wouldn't float away once I poured silicone over it. Then I used more cardboard to glue together a watertight wall around the plate with an approximate standoff of one inch.
Here's a shot of the painted prototype with mold box built around it:
After double-checking to be sure that the box wouldn't leak, I mixed up a batch of silicone RTV moldmaking rubber and began pouring:
When pouring the rubber, it's a good idea to start pouring into a low part of the mold. This way the rubber will flow up and over the part in the mold without trapping as many bubbles against the surface of the part.
After filling the mold box so that there was at least 1/2" of silicone over the top of the part, I left it overnight to cure. You want that half inch of rubber so that any bubbles will have a chance to rise up and away from the surface of the piece you're replicating. Any bubbles in the rubber now will become warts on the copies when it comes time to make castings.
Once the rubber had completely cured, the next step was to flip the mold over and remove the cardboard:
With the cardboard peeled off, you can peel the rubber off of the prototype:
To make a copy of the prototype, it's just a quick matter of filling the silicone mold with a lightweight casting resin or expanding foam:
Depending on the quality of the silicone rubber you use, you can get anywhere from twenty to sixty castings out of a mold like this.
While it looks just like any other 25-lb barbell plate, this particular casting weighs about 4 ounces. It makes it look like I have really strong fingers:
Since I cast this particular plate in flexible foam, it'll bounce when you throw it at someone.
Fun!
The first type of mold I demonstrated was a one-sided mold occasionally referred to as a "block mold." This is the type of mold you make when you need to replicate something with a flat side that has no details. When laid on that side, the piece has to have no significant undercuts where bubbles will be trapped.
I decided that the perfect candidate for reproduction would be a simple barbell plate. I started by carving out a quick prototype on my CNC machine:
Here it is after a light sanding:
I gave it a couple of coats of primer to seal up the surface and then it was time to set it up for molding.
First, I glued it down to a piece of cardboard so it wouldn't float away once I poured silicone over it. Then I used more cardboard to glue together a watertight wall around the plate with an approximate standoff of one inch.

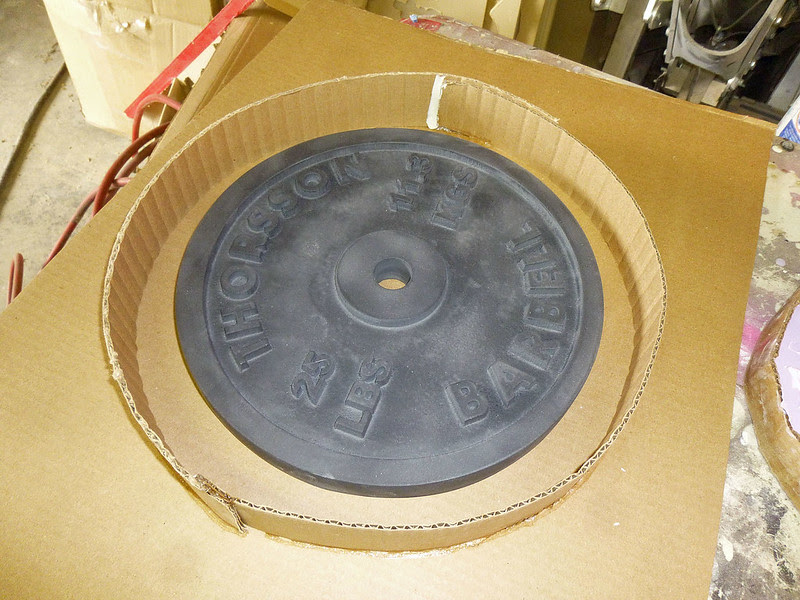

Here's a shot of the painted prototype with mold box built around it:
After double-checking to be sure that the box wouldn't leak, I mixed up a batch of silicone RTV moldmaking rubber and began pouring:
When pouring the rubber, it's a good idea to start pouring into a low part of the mold. This way the rubber will flow up and over the part in the mold without trapping as many bubbles against the surface of the part.
After filling the mold box so that there was at least 1/2" of silicone over the top of the part, I left it overnight to cure. You want that half inch of rubber so that any bubbles will have a chance to rise up and away from the surface of the piece you're replicating. Any bubbles in the rubber now will become warts on the copies when it comes time to make castings.
Once the rubber had completely cured, the next step was to flip the mold over and remove the cardboard:

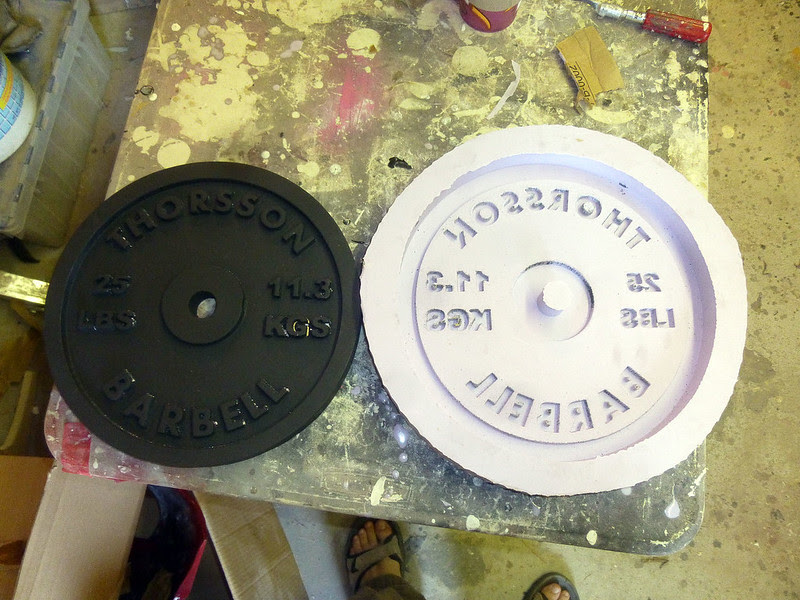

With the cardboard peeled off, you can peel the rubber off of the prototype:
To make a copy of the prototype, it's just a quick matter of filling the silicone mold with a lightweight casting resin or expanding foam:
Depending on the quality of the silicone rubber you use, you can get anywhere from twenty to sixty castings out of a mold like this.

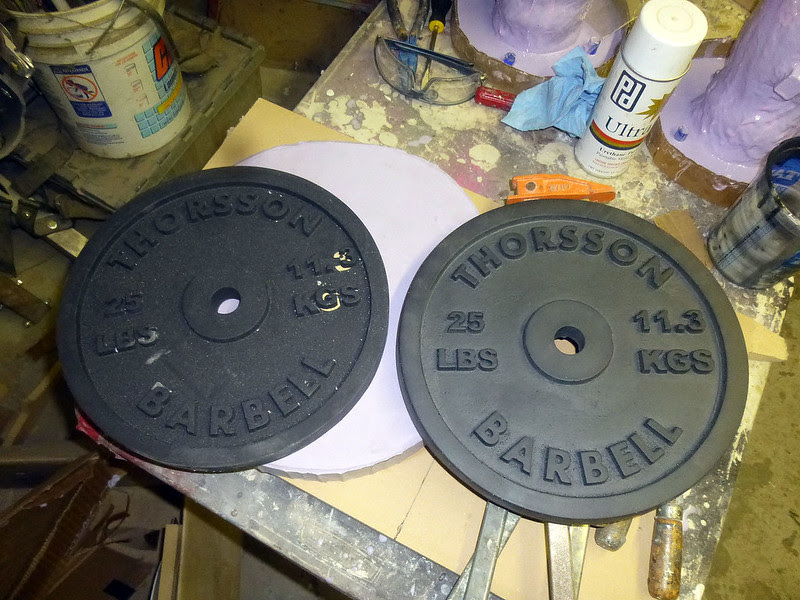

While it looks just like any other 25-lb barbell plate, this particular casting weighs about 4 ounces. It makes it look like I have really strong fingers:
Since I cast this particular plate in flexible foam, it'll bounce when you throw it at someone.
Fun!
Labels:
moldmaking,
practical jokes,
Prop Building 101
Friday, August 2, 2013
Gnomes in Stock
The votes are in and the results were overwhelmingly in favor of sculpting the Mortar Launcher as the next Combat Garden Gnome. Here's a few snapshots of the sculpt in progress:

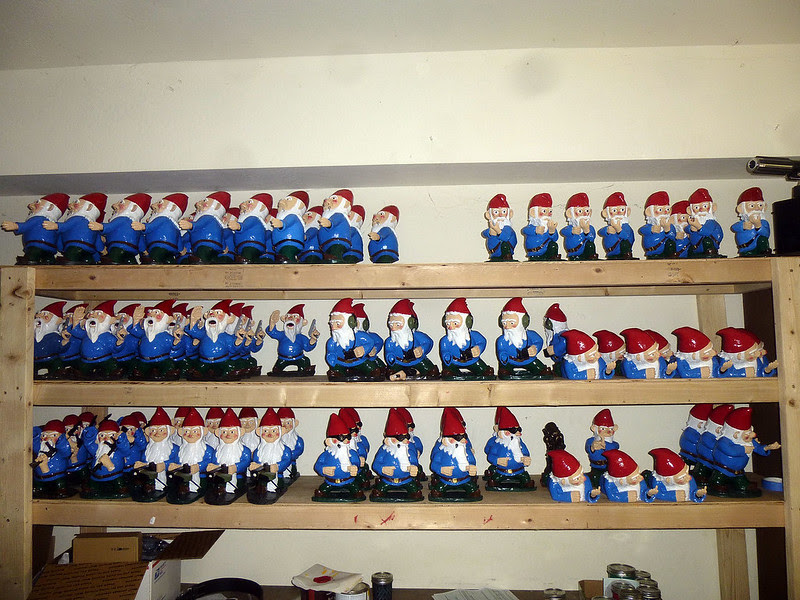

There's still a few details to sort out, then I'll be ready to start making the mold for this guy. Meanwhile, I've got a lot of other gnomes in stock:
